ALIO™ Note
ALIO™ Note

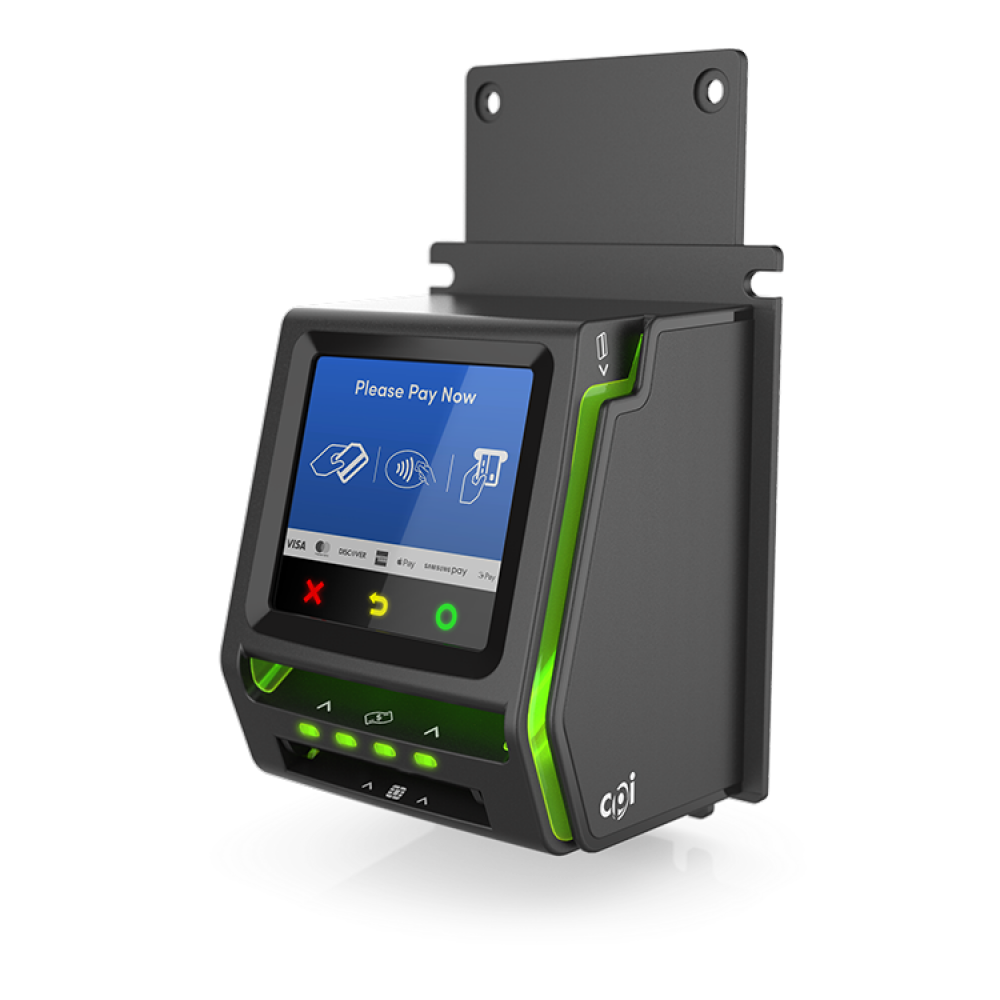

Alio Note: Smart Cashless Payments for Modern Vending
Benefits
- Reduced hardware. Combines cash acceptance, ePayment, telemetry, antenna, and full-color screen display in a single device for a better customer payment experience
- Faster Installation. Reduced hardware provides 56% reduction in hardware installation time
- Antenna Options. Eliminate the need for drilling accessory holes in machine with the industry’s first internal cellular antenna and 4G LTE connectivity. Or, reuse an existing external 4G Antenna with plug-and-play connector.
- Engaging User Interface. Digital, full-color screen with capacitive touch buttons allows for enhanced customer engagement and digital advertising opportunities

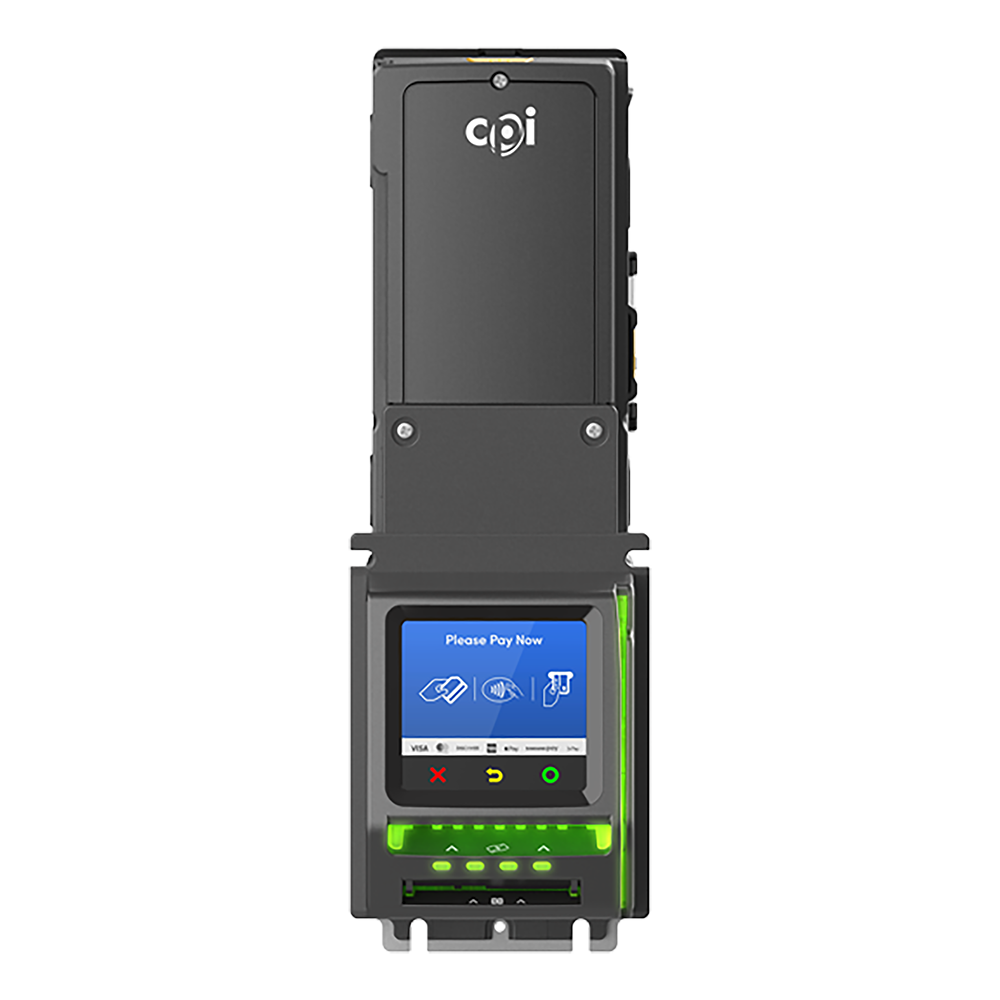

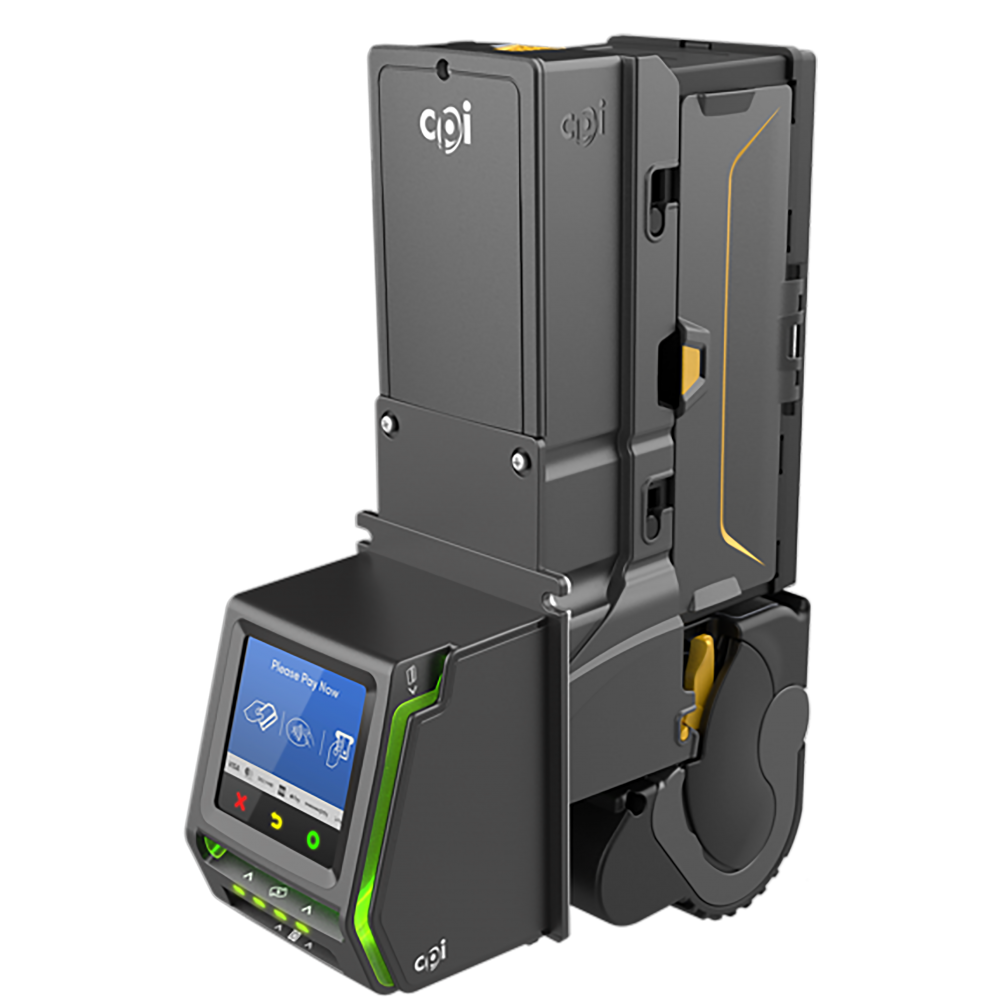

- Pair with Talos Recycler. Pair with Talos recycler – deliver a potential 50% lift in sales
- Enhanced Service Experience with On-Screen Diagnostics and Connection Tests.
Explore ALIO™ Note features
With ALIO™ Note, CPI has combined card reader, telemetry and digital display technology into a single device that seamlessly integrates with note acceptance. Capable of accepting cash, magnetic stripe, mobile payments, contactless EMV, ApplePay and GooglePay Mobile Wallets, and Transact Contactless and Mobile Campus Cards, Alio Note delivers all you need for a complete solution, all in one device
| Payments | Magnetic Stripe, Chip, Visa qVSDC, MasterCard Paypass, American Express – Expresspay, Discover Zip, SamsungPay, ApplePay, GooglePay, PayRange |
|---|---|
| Campus Cards | Mag Stripe, Transact Contactless and Mobile |
| Security | Embedded Secure Element, DUKPT Encryption, RSA 2048, TDES, TLS 1.3 |
| Interfaces | RS232, CAN, MDB Master, 1/4″ RS232 DEX, USB OTG Mini-B |
| Wireless Network | 4G LTE CatM Radio, Verizon |
| Environmental | |
| Operating Environment | -59˚F (-15˚C) to 140˚F (60˚C), 5% to 95% Relative Humidity (Non-condensing) |
| Storage Environment | -40˚F (-40˚C) to 158˚F (70˚C), 5% to 95% Relative Humidity (Non-condensing) |
| Ingress Protection | IP54 |
| Power | 34VDC via MDB; 1 amp peak current |
| Regulatory Compliance | RoHS, FCC, PCI |
