COTI™

Premium coffee solution for modern spaces

Benefits

Barista style coffee
Large, full capacity touchscreen
Extensive drinks menu
Reduced maintenance costs
Customizable beverage options
Upgraded consumer experience

Explore COTI™ features

Overview
Specification
Downloads
Resources

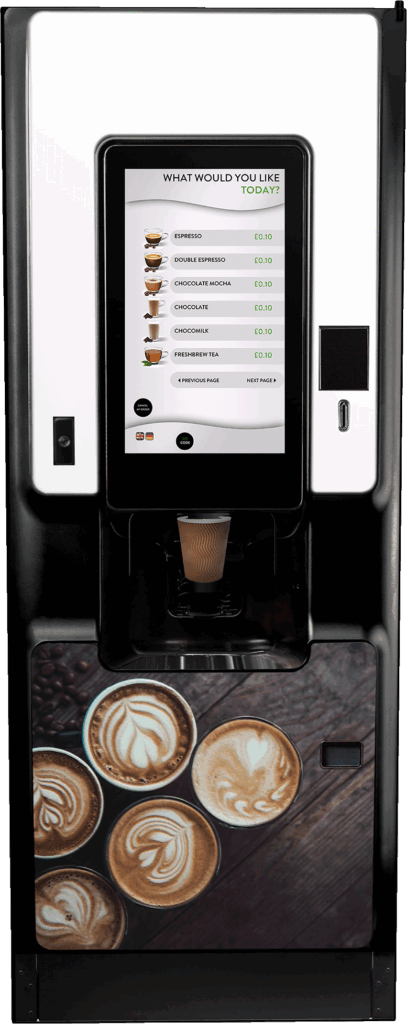

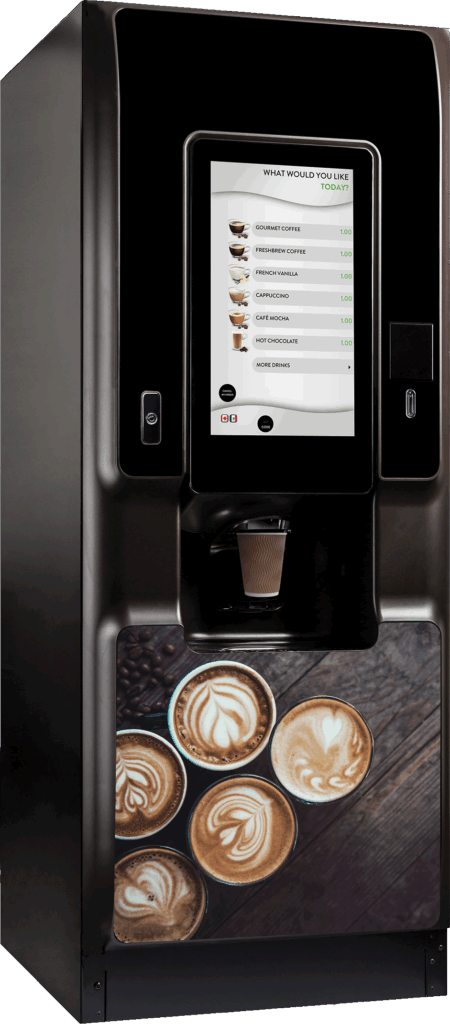

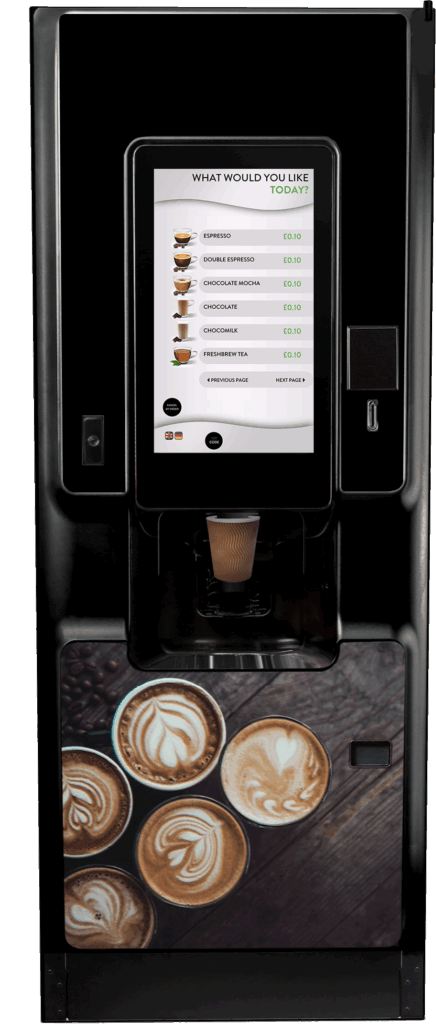

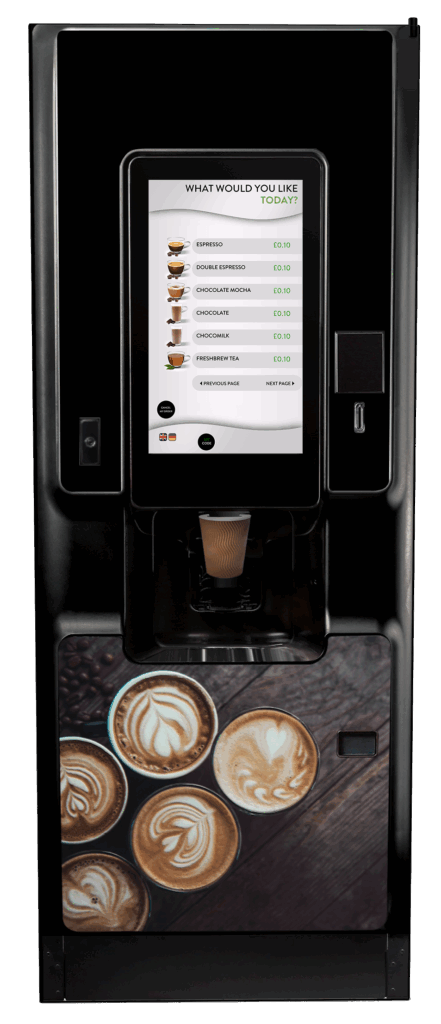

The COTI machine delivers a premium, modern and fast coffee experience in a sleek format. COTI features a vibrant 21-inch touchscreen and a broad drinks menu from bean to cup selections to freshly brewed tea and chocolate with many personalization options. With reduced maintenance time and seamless integration across Crane systems, it’s the ideal solution for offices, public spaces, and hospitality environments seeking barista-style coffee at the touch of a button.

Features:

21″ Full-Capacity Touchscreen – ADA-compliant interface with HD video and custom branding options
Extensive Drink Menu – Offers coffee, espresso, and tea beverages with flexible pricing and customization
“My Code” Feature – Encourages repeat visits with personalized beverage settings
Reduced Maintenance – 15–50% faster cleaning compared to competitive machines
Flexible UI – Customize drink names, menu layout, and screen visuals
System Integration – Works seamlessly with other Crane vending and payment systems for a unified experience
Ingredient accurate allergen & nutrition info-calculated from the exact ingredients loaded in the machine (not generic recipes)

Screen Resolution1920 x 1080 pixels
Model TypeCoffee: soluble, freshbrew and beans
Tea: soluble, and freshbrew
Option of cold water and two cold syrups

Features:
User Interface	Touch screen
Screen Size	21.5″ portrait HD colour disp
Screen Dimensions	266mm x 475 mm portrait	10.5″ x 18.7″ portrait
Screen Performance	24 bit full color TFT display
Video Supported	Yes
Brewing System Coffee	Co-Ex (Coffee & Espresso) Capacity – from 6.5 to 9.5 grams
Brewing System Tea	Crane Oltre brewer
Mixing System	Crane mixing system
Cup Drop Unit	Crane cup drop unit \| Plastic, paper, single, dual walled cups
Cup Capacity	Upto 800
Cup Diameter	70mm, 73mm, 80mm	2.8″, 2.9″, 3.1″
Cup Size	200, 250, 340ml	7, 9, 12oz
USB Connectivity	3 x USB 2.0
EVA/DTS Communication Module	via DEX port
Jug Facility	Yes (jug code) Option of jug key
Cup Sensor	Surevend cup sensors fitted as standard on all models
Energy-Saving Mode	Programmable enegy saving mode
My Code	Yes
Free Vend	Yes
Payment Systems	Up to 3
Coin/Notes/Cashless	Compatible with the leading systems
Vend Time (bean to cup)	39 seconds (based on a 160ml serving)
Vend Time (fresh brew)	35 seconds (based on a 160ml serving)
Vend Time (soluble coffee)	17 seconds (based on a 160ml serving)
Waste Bucket Capacity – dry	24 litres	6.35 gallons
Waste Bucket Capacity – liquid	9 litres	2.38 gallons
Electronic Temperature Control	Included as standard
Electronic Water Level Control	Included as standard
Specifications:
Height	1830mm / 72″
Depth	790mm / 31.1″
Width	700mm / 27.5″
Weight	193kg /426lbs
Door Open Dimensions	Width: 1370mm/ 54″ door at 180° Depth: 1460mm/ 57.5″ door at 90°
MDB Protocol	Included as standard
EXE Protocol	Executive protocol kit available as a cost option
Power Supply Voltage	115V
Power Supply Frequency	60 Hz
Energy Consumption	Instant and FB models: 125 wh/h Espresso model: 146 wh/h
Installed Power	2.27kW
Water Main Pressure	200 Kpa (2 bar) – 600 Kpa (6 bar)
Stopcock	15mm BSP from rising main
Filtration	Compatible with the leading systems
Ingredient capacities	kgs	lbs
Beans	3.5	7.7
Ground coffee	1.5	3.3
Leaf tea	1.7
Instant coffee	0.5	2.2
Sugar	3.4	7.5
Milk	2.5
Cappuccino milk	2.2/4.7
Chocolate	2.1/5.8	6
Soup	variable
Whitener		5.5
Flavoured Soluble Coffee		6
